Checkpoint: Data Visualization

A checkpoint is a chance to consolidate, where you review the data-visualization skills from the recent lessons and prove them by building one complete, polished, annotated figure of your own.

Learn Checkpoint: Data Visualization in our free Matplotlib course — a beginner-friendly interactive lesson with worked examples, a practice exercise and a…

Part of the free Matplotlib course at LearnCodingFast — hands-on lessons with examples you run in your browser, plus practice exercises and a quick quiz.

You'll recap vector fields, spines, advanced legends, inset and broken axes, patches, events, multiple figures, tables, log scales, the extra plot types, and donuts — then put them to work in a multi-step build challenge and a short quiz.

You have added a deep set of tools since the last checkpoint. Here is the quick map of what each one is for, so you can pick the right technique when you build the challenge below.

Before the big build, warm up by combining a clean spine treatment with a shaded region and an annotation — three small skills working together on one line chart.

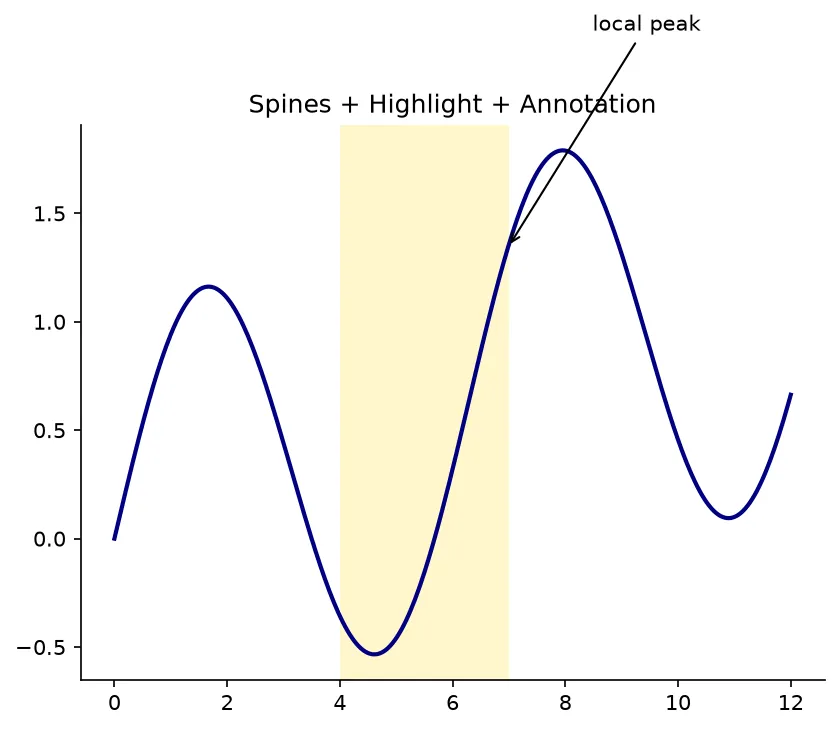

What you'll see: a navy curve on an open L-shaped frame, a gold band marking the region of interest, and an arrow labeling the local peak inside it — three techniques in one tidy figure.

Build a two-panel figure for a fictional product launch. Left panel: a semilog line of daily downloads (which grow exponentially) with the top and right spines hidden and the launch day annotated. Right panel: a donut of traffic sources with percentage labels and a legend. Give the whole figure a title.

Start from the scaffold below and fill in each # TODO . Build one piece at a time and run after each. When you are done, expand the solution to compare.

Answer each question in your head, then expand to check yourself.

ax.streamplot(X, Y, U, V) . It integrates the field into smooth curves, whereas ax.quiver draws a discrete arrow at each grid point.

Set their visibility to False: ax.spines['top'].set_visible(False) and ax.spines['right'].set_visible(False) .

loc together with bbox_to_anchor — for example ax.legend(loc='center left', bbox_to_anchor=(1, 0.5)) parks it to the right.

symlog : ax.set_yscale('symlog', linthresh=...) is linear near zero and logarithmic beyond it, so it handles negatives and the zero crossing a plain log cannot.

Pass wedgeprops=dict(width=0.4) to ax.pie() . The width is the ring thickness, so the rest of the center becomes the hole.

ax.broken_barh(xranges, yrange) : each task is one row, and a single call can place several (start, duration) segments with gaps between them.

Checkpoint cleared — you can compose a polished figure!

You recapped the whole advanced toolkit, combined spines, patches, annotations, log scales, and donuts into one dashboard, and tested yourself with the checkpoint quiz.

🚀 Up next: Capstone Project — design a complete multi-panel visualization from scratch on a dataset of your choice.
