Logarithmic & Symlog Scales

A logarithmic scale spaces an axis by powers rather than by equal steps, so data spanning many orders of magnitude fits in one chart and exponential growth straightens into a readable line.

Learn Logarithmic & Symlog Scales in our free Matplotlib course — a beginner-friendly interactive lesson with worked examples, a practice exercise and a…

Part of the free Matplotlib course at LearnCodingFast — hands-on lessons with examples you run in your browser, plus practice exercises and a quick quiz.

In this lesson you'll switch axes to log with set_yscale('log') , use the loglog / semilogx / semilogy shortcuts, handle zeros and negatives with symlog , and tidy log ticks.

When values explode across magnitudes, a linear axis crushes the small numbers into a flat line near zero. Flip the axis with ax.set_yscale('log') and each gridline becomes a power of ten, so 1, 10, 100, and 1000 are evenly spaced and all visible at once.

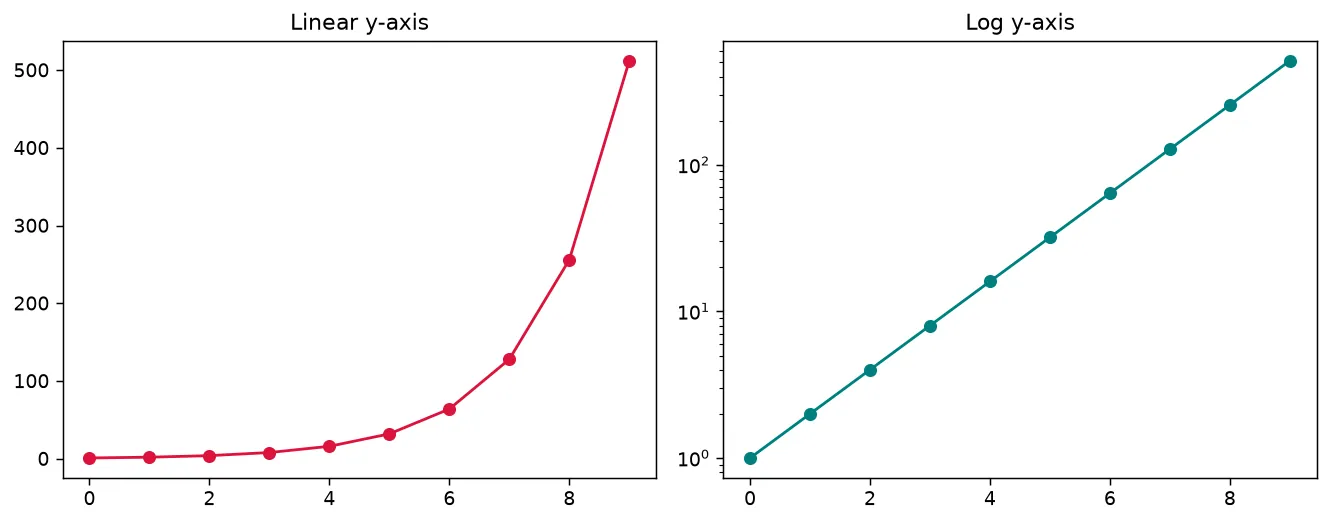

What you'll see: two panels of the same doubling data — on the left the early values hug the bottom while the last point shoots up, but on the right the log axis turns the whole series into a clean straight line.

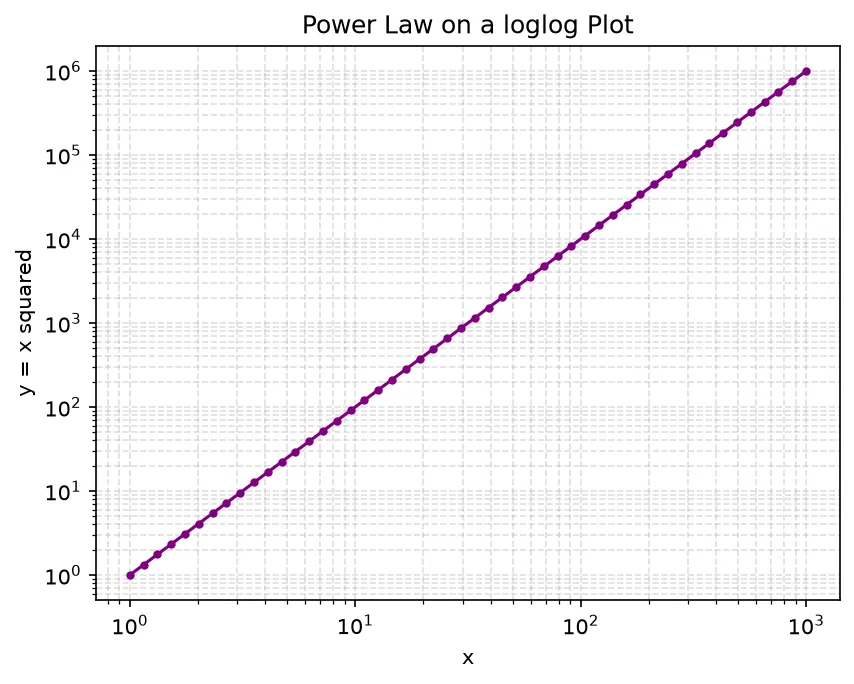

Matplotlib offers one-call shortcuts that plot and set the scale together. ax.semilogy() logs the y-axis, ax.semilogx() logs the x-axis, and ax.loglog() logs both. A power law like y = x² becomes a straight line on a loglog plot, with the slope revealing the exponent.

A plain log scale cannot show zero or negative values. symlog (symmetric log) fixes this: it is linear in a small band around zero — set by linthresh — and logarithmic beyond it on both sides. That makes it perfect for data that crosses zero yet still spans large magnitudes.

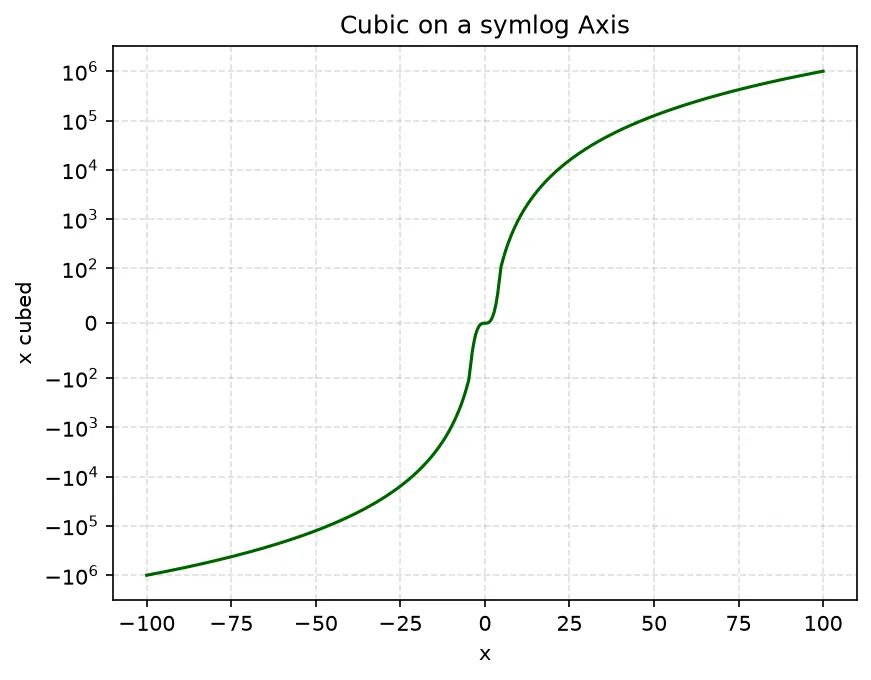

What you'll see: the cubic curve sweeping from large negative to large positive values through zero — the symlog axis keeps the small middle readable while compressing the enormous tails on both ends.

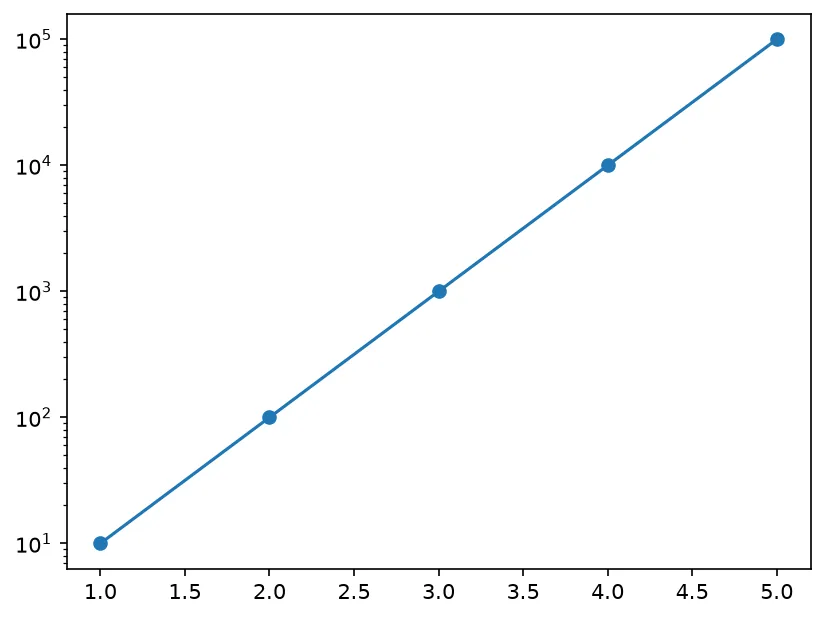

Replace each ___ to plot growth data on a log y-axis.

❌ My log plot is blank or warns about non-positive data

Log cannot handle 0 or negatives. ✅ Filter them out, or use set_yscale('symlog') which spans zero.

The linear band is the wrong size. ✅ Tune linthresh= to roughly the smallest magnitude you care about.

logit needs values strictly between 0 and 1. ✅ Keep your data inside the open interval (0, 1) — no exact 0 or 1.

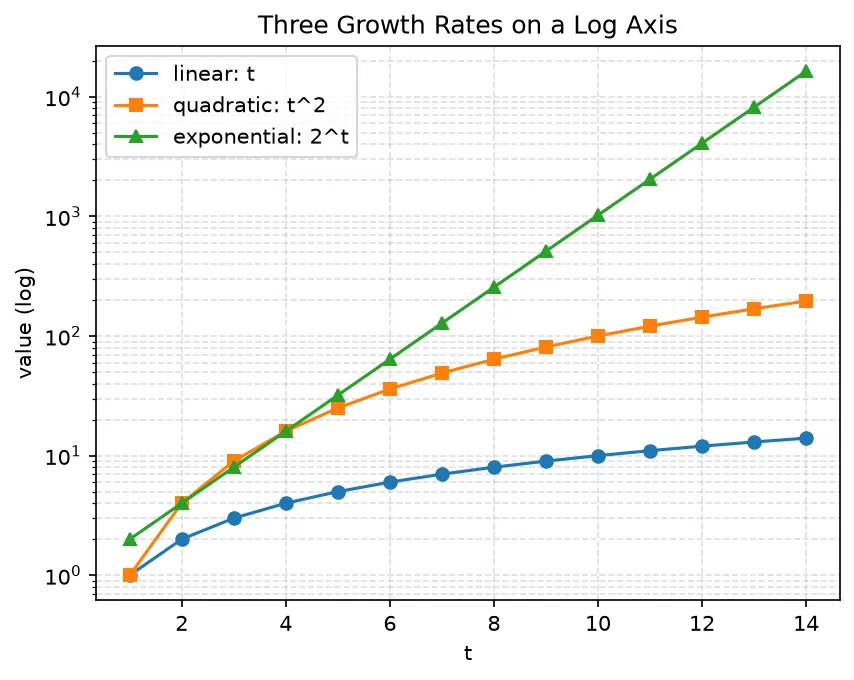

Plot linear, quadratic, and exponential growth on a semilog y-axis so their very different scales all fit.

Lesson complete — magnitudes hold no fear!

You switched axes to log, used the semilog and loglog shortcuts, recognized exponential growth as a straight line, and handled zeros and negatives with symlog.

🚀 Up next: More Plot Types — eventplot, broken_barh, and stairs for timelines, Gantt charts, and step outlines.

Practice quiz

Which call switches an existing y-axis to a logarithmic scale?

  • ax.logy()
  • ax.set_ylog()
  • ax.set_yscale('log')
  • ax.yscale(log=True)

Answer: ax.set_yscale('log'). ax.set_yscale('log') flips the y-axis to a log scale.

On a log axis, what does a straight line indicate?

  • Exponential growth
  • Linear growth
  • Constant data
  • Random noise

Answer: Exponential growth. Equal distances on a log axis are equal ratios, so exponential growth becomes a straight line.

Which shortcut plots and logs BOTH axes in one call?

  • ax.semilogx()
  • ax.semilogy()
  • ax.plot(log=True)
  • ax.loglog()

Answer: ax.loglog(). ax.loglog(x, y) plots and sets both axes to log.

What does ax.semilogy(x, y) do?

  • Logs both axes
  • Plots and logs only the y-axis
  • Logs only the x-axis
  • Plots with no log scale

Answer: Plots and logs only the y-axis. semilogy logs the y-axis only while plotting in one call.

Why does a plain log scale fail on zero or negative data?

  • It needs integers
  • It requires sorted data
  • The log of zero is undefined and of a negative is complex
  • It only works on the x-axis

Answer: The log of zero is undefined and of a negative is complex. log(0) is undefined and log of a negative is complex, so those points drop or error.

Which scale handles data that crosses zero across large magnitudes?

  • log
  • logit
  • linear
  • symlog

Answer: symlog. symlog is linear near zero and logarithmic beyond it, so it spans zero and negatives.

What does the linthresh parameter control on a symlog scale?

  • The width of the linear band around zero
  • The color of the axis
  • The number of ticks
  • The line width

Answer: The width of the linear band around zero. linthresh sets how wide the linear region around zero is before the log behavior begins.

Which scale stretches values near 0 and near 1 for probabilities?

  • symlog
  • logit
  • log
  • linear

Answer: logit. The logit scale stretches regions near 0 and 1, ideal for proportions in (0, 1).

What does which='both' do in ax.grid() on a log axis?

  • Logs both axes
  • Removes the grid
  • Doubles the figure
  • Shows major and minor gridlines

Answer: Shows major and minor gridlines. which='both' draws major and minor gridlines, including the faint minor lines within each decade.

What input does the logit scale require?

  • Any real numbers
  • Only integers
  • Values strictly between 0 and 1
  • Only negative values

Answer: Values strictly between 0 and 1. logit needs values strictly in the open interval (0, 1) — no exact 0 or 1.
