Saving Figures

Matplotlib is a Python library for creating charts and visualizations — and once a chart looks right, you'll want it as a file you can drop into a report, email, or web page.

Learn Saving Figures in our free Matplotlib course — a beginner-friendly interactive lesson with worked examples, a practice exercise and a quick reference.

Part of the free Matplotlib course at LearnCodingFast — hands-on lessons with examples you run in your browser, plus practice exercises and a quick quiz.

In this lesson you'll use plt.savefig() to export charts as PNG, SVG, and PDF, and tune resolution, bounds, and transparency.

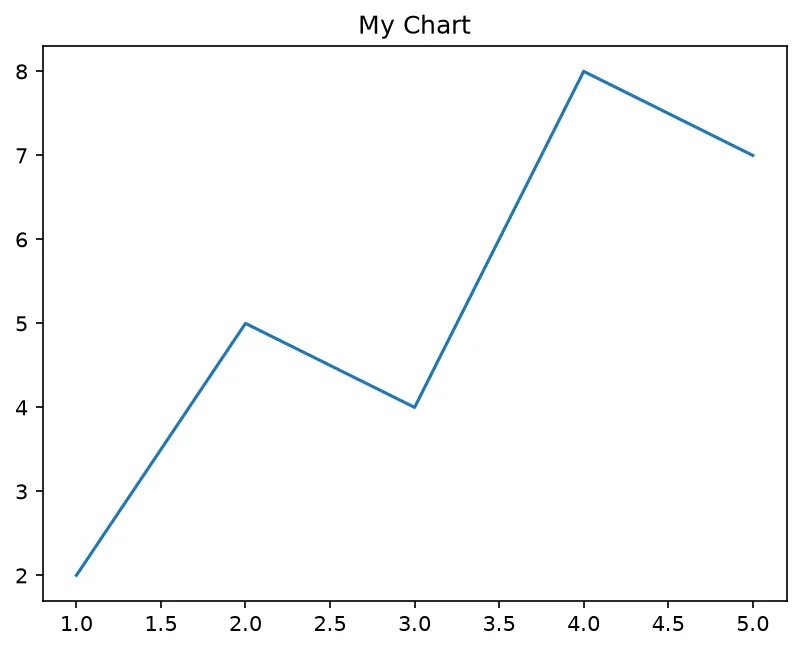

plt.savefig("name.png") writes the current figure to a file. The extension you choose decides the format — no extra settings needed.

What you'll see: a normal line chart on screen, and a new file my_chart.png in your working folder that contains the exact same image — open it and the chart is there.

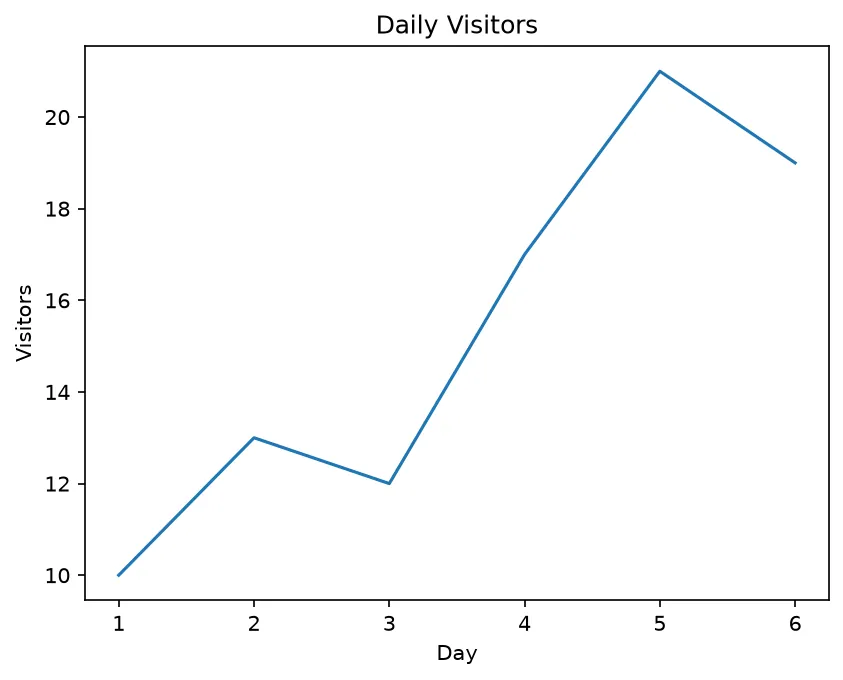

Two arguments make saved charts look professional: dpi raises the resolution, and bbox_inches="tight" trims any wasted whitespace around the plot so labels aren't cut off.

What you'll see: the same on-screen chart, but the saved visitors.png is much higher resolution and cropped snugly around the plot and its labels, with no extra border.

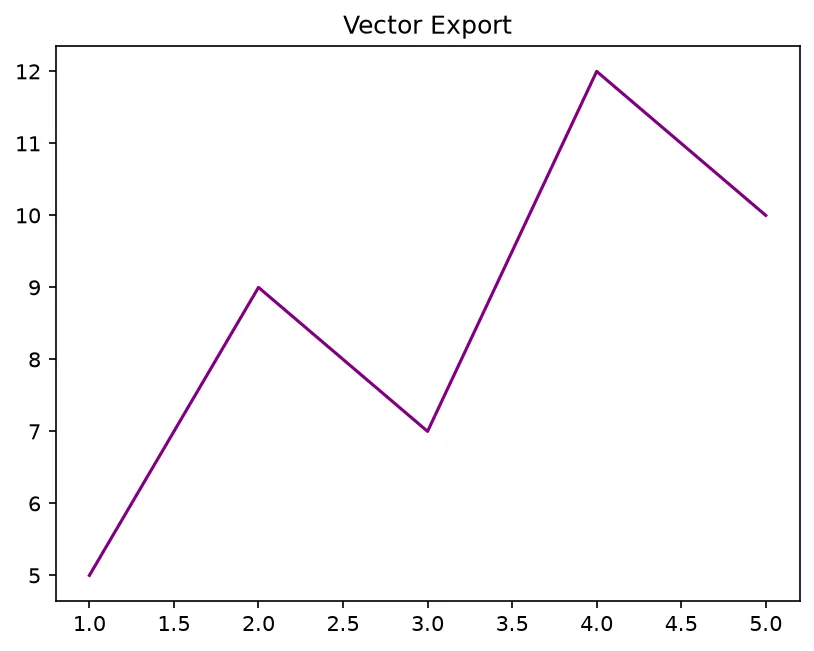

Pass transparent=True to drop the white background — handy for slides and web pages. Save with a .svg or .pdf extension to get crisp vector output that scales to any size.

What you'll see: the purple chart on screen, plus three files — a PNG whose background is see-through, and SVG and PDF versions that stay razor-sharp no matter how far you zoom in.

Replace each ___ to save a high-resolution, neatly trimmed chart.

You called savefig() after show() . The figure was already cleared. Save first.

Add bbox_inches="tight" so Matplotlib expands the bounds to include every label.

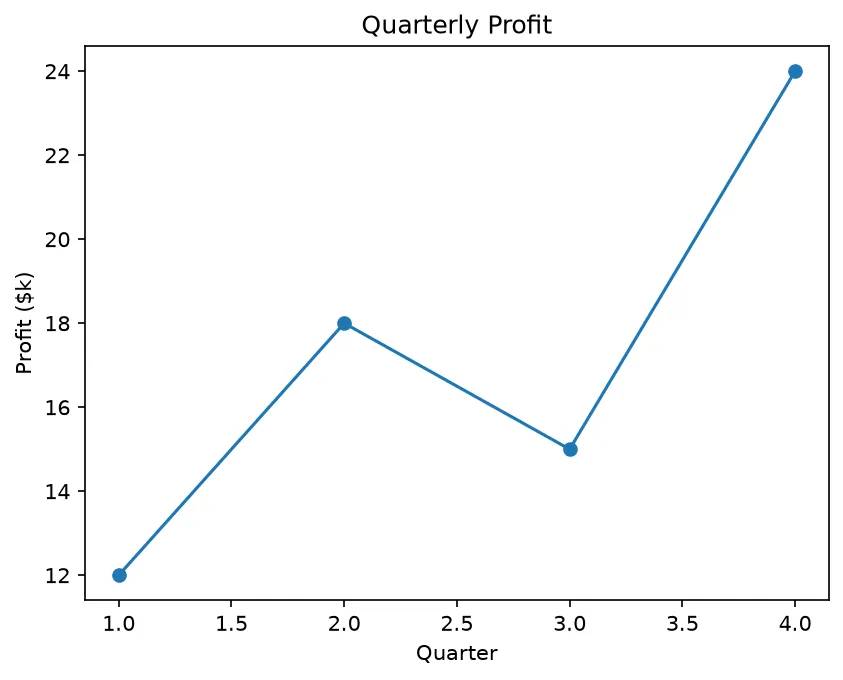

Build a labelled chart and export it twice — a print PNG and a vector PDF.

Lesson 6 complete — your charts are export-ready!

You saved figures as PNG, SVG, and PDF, tuned resolution with dpi, trimmed bounds, and added transparency.

🚀 Up next: Bar Charts — move beyond lines to compare categories side by side.

Practice quiz

Which call writes the current figure to a file?

  • plt.export()
  • plt.write()
  • plt.savefig('chart.png')
  • plt.dump()

Answer: plt.savefig('chart.png'). plt.savefig('chart.png') saves the current figure to disk.

How does savefig decide the file format?

  • From the file extension
  • From a format=auto flag
  • It always saves PNG
  • From the dpi value

Answer: From the file extension. The extension (.png, .svg, .pdf) selects the output format.

What does the dpi argument control?

  • The figure title
  • The resolution of raster output
  • The background color
  • The line style

Answer: The resolution of raster output. dpi (dots per inch) sets the resolution; dpi=300 is common for print.

Which argument trims whitespace so labels are not cut off?

  • pad='none'
  • trim=True
  • crop='auto'
  • bbox_inches='tight'

Answer: bbox_inches='tight'. bbox_inches='tight' crops the image snugly around the plot and labels.

How do you save with a see-through background?

  • transparent=True
  • background=None
  • alpha=0
  • clear=True

Answer: transparent=True. Pass transparent=True to drop the white background (PNG/SVG).

Why must savefig come before show()?

  • show() runs faster afterward
  • show() clears the figure, leaving a blank save
  • savefig needs the window open
  • Order does not matter

Answer: show() clears the figure, leaving a blank save. After show() the figure is cleared, so a later savefig writes a blank image.

Which extensions give crisp vector output?

  • .jpg and .gif
  • .png and .bmp
  • .svg and .pdf
  • .tif and .jpg

Answer: .svg and .pdf. .svg and .pdf are vector formats that scale without blurring.

Which format ignores transparent=True?

  • PNG
  • SVG
  • PDF
  • JPG

Answer: JPG. JPEG has no alpha channel, so transparent=True is ignored for JPG.

What dpi value is the usual standard for print?

  • 72
  • 100
  • 300
  • 10

Answer: 300. dpi=300 is the usual print standard; default 100 is fine for the web.

Why might a saved file appear blank or empty?

  • dpi was too high
  • The extension was .png
  • savefig was called after show()
  • bbox_inches was used

Answer: savefig was called after show(). Calling savefig after show() saves an already-cleared figure.
