Customizing Spines & Axis Position

Spines are the four border lines around a plot, and customizing them lets you hide clutter, recolor edges, or move the axes to cross at the origin for a clean, professional look.

Learn Customizing Spines & Axis Position in our free Matplotlib course — a beginner-friendly interactive lesson with worked examples, a practice exercise and…

Part of the free Matplotlib course at LearnCodingFast — hands-on lessons with examples you run in your browser, plus practice exercises and a quick quiz.

In this lesson you'll hide the top and right borders, recolor and thicken spines, shorten them with bounds, and move the left and bottom spines to zero for a centered, math-style axis.

Every Axes has four spines stored in ax.spines : 'top' , 'bottom' , 'left' , and 'right' . The single most popular tweak in all of Matplotlib is hiding the top and right ones — it removes the box and instantly modernizes the chart.

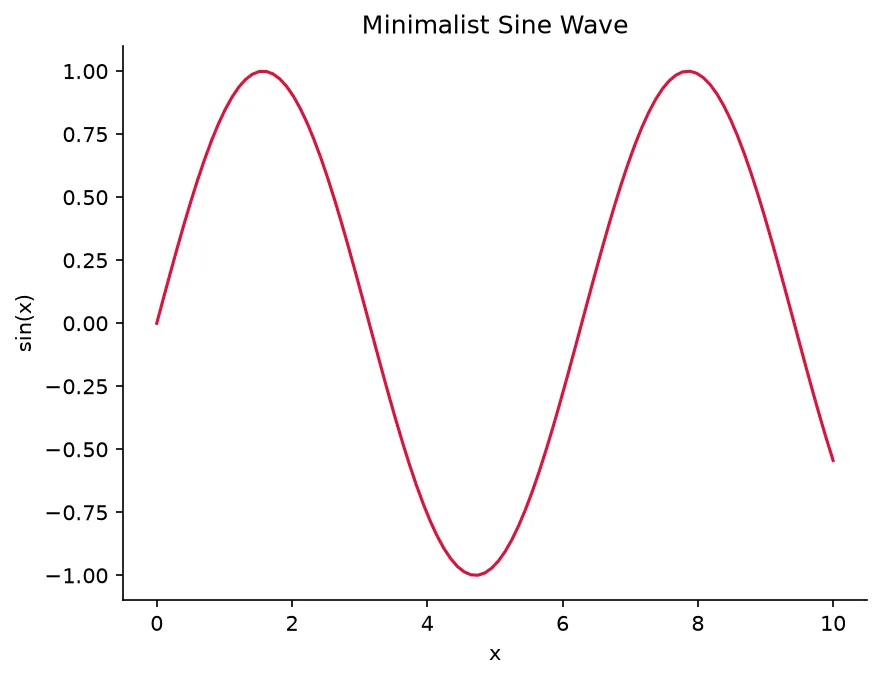

What you'll see: a crimson sine wave with only an L-shaped frame — the left and bottom spines remain, but the top and right borders are gone, so the chart feels open and uncluttered.

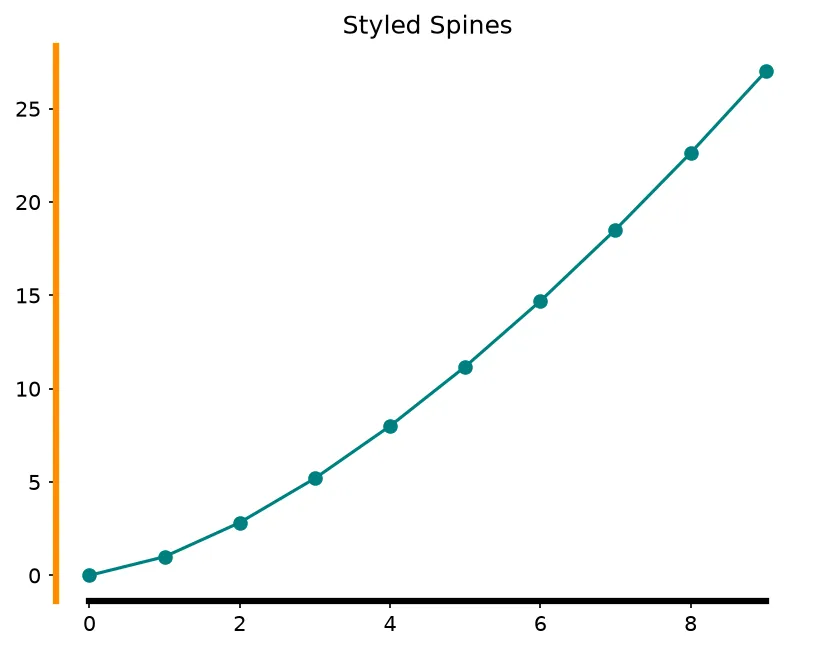

A spine is a full artist, so you can restyle it. Use set_color() and set_linewidth() to change how it looks, and set_bounds(low, high) to draw it only across part of the axis — handy for emphasizing the range your data actually covers.

To get the classic math-textbook cross through the origin, move the left and bottom spines to the data value 0 with set_position('zero') , then hide the top and right spines. Finally, tell the ticks to follow by calling ax.xaxis.set_ticks_position('bottom') and ax.yaxis.set_ticks_position('left') .

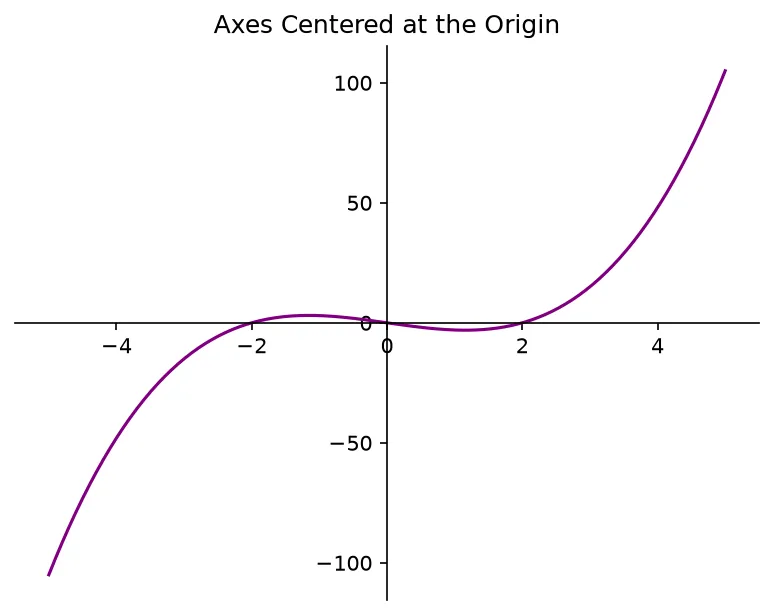

What you'll see: the purple cubic curve passing through a cross formed by the x and y axes meeting at the center of the plot, with tick numbers running along both arms of the cross.

Replace each ___ to hide the top and right spines of this scatter plot.

Spine names are lowercase. ✅ Use 'top' , 'bottom' , 'left' , 'right' — never capitalized.

Moving a spine does not move the ticks. ✅ Call ax.xaxis.set_ticks_position('bottom') and ax.yaxis.set_ticks_position('left') after repositioning.

Spines live on an Axes , not on plt . ✅ Get an axes first with fig, ax = plt.subplots() , then use ax.spines[...] .

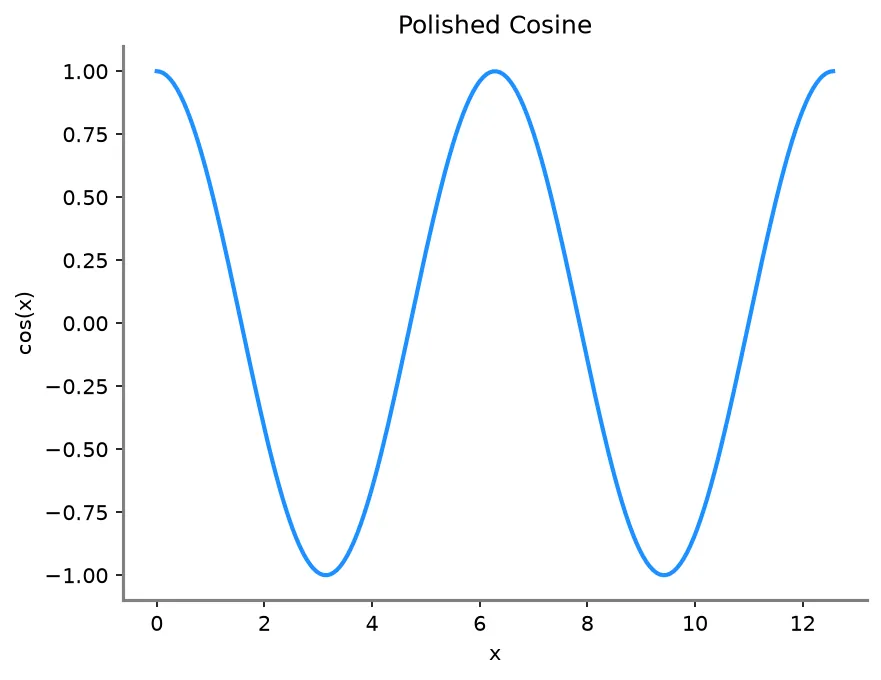

Plot a cosine curve, hide the top and right spines, recolor the left and bottom spines gray, and thicken them to 1.5.

Lesson complete — you control the frame!

You hid the top and right spines, recolored and thickened the rest, shortened a spine with bounds, and centered the axes at the origin for a math-textbook look.

🚀 Up next: Advanced Legends — place legends outside the axes, build custom handles, and add more than one legend at a time.

Practice quiz

What are the four spines of an Axes?

  • north, south, east, west
  • top, bottom, left, right
  • x, y, z, w
  • up, down, in, out

Answer: top, bottom, left, right. Spines are keyed 'top', 'bottom', 'left', and 'right' in ax.spines.

How do you hide the top spine?

  • top

Answer: top. set_visible(False) on the spine hides it.

Where do spines live?

  • On plt
  • On the Figure
  • On the colorbar
  • On the Axes (ax.spines)

Answer: On the Axes (ax.spines). Spines belong to an Axes; access them via ax.spines[...].

Which call moves the left spine to the data value 0?

  • left

Answer: left. set_position('zero') moves the spine to data value 0.

Which method shortens a spine to part of the axis?

  • set_length()
  • set_range()
  • set_bounds(low, high)
  • set_limit()

Answer: set_bounds(low, high). set_bounds(low, high) draws the spine only across that range.

Which call recolors a spine to navy?

  • left

set_color('navy') changes the spine's color.

Why might ticks stay put after you move a spine?

  • Moving a spine does not move ticks
  • Ticks are broken
  • You must call plt.show() twice
  • set_position deletes ticks

Answer: Moving a spine does not move ticks. Call ax.xaxis.set_ticks_position(...) to make ticks follow the moved spine.

What does ax.spines['left'].set_linewidth(2.5) do?

  • Hides the spine
  • Moves the spine
  • Recolors the spine
  • Thickens the spine

Answer: Thickens the spine. set_linewidth changes the spine's thickness in points.

Why does ax.spines['Top'] raise KeyError?

  • Spines are uppercase
  • Spine names are lowercase
  • Top is not a spine
  • It needs an index

Answer: Spine names are lowercase. Spine names are lowercase: use 'top', not 'Top'.

Which is the single most common spine tweak?

  • Coloring all spines red
  • Moving every spine to zero
  • Hiding the top and right spines
  • Thickening the bottom spine

Answer: Hiding the top and right spines. Hiding the top and right spines gives charts a clean, modern look.
