Adding Tables to Plots

A Matplotlib table renders a grid of values right inside a figure, letting you pair exact numbers with a chart so a dashboard shows both the visual trend and the precise data behind it.

Learn Adding Tables to Plots in our free Matplotlib course — a beginner-friendly interactive lesson with worked examples, a practice exercise and a quick…

Part of the free Matplotlib course at LearnCodingFast — hands-on lessons with examples you run in your browser, plus practice exercises and a quick quiz.

In this lesson you'll build tables with ax.table() , add row and column labels, style individual cells, and place a table neatly below a chart.

ax.table() turns a list of rows into a grid. Pass cellText — a list where each inner list is one row of strings — plus colLabels for the headers and a loc for placement. Because the table fills the axes, you usually hide the axes themselves with ax.axis('off') .

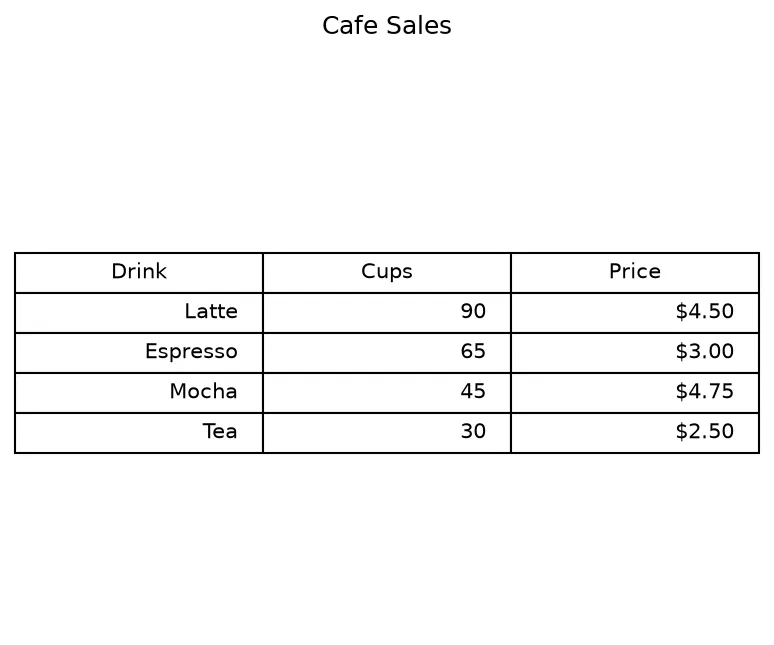

What you'll see: a clean three-column table of cafe sales — Drink, Cups, and Price — with a bold header row and four data rows, sitting centered in the figure with no axes around it.

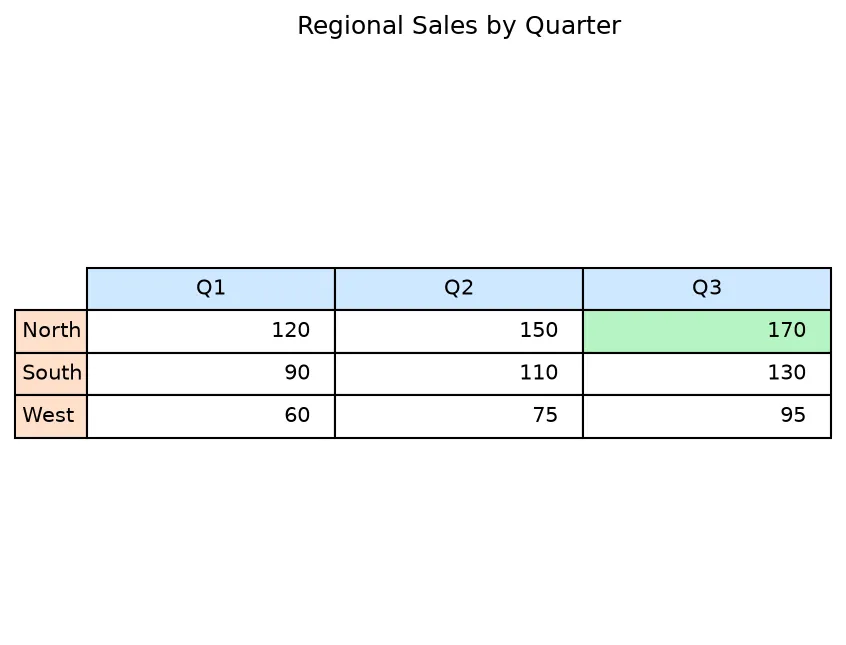

Add rowLabels for a header down the left side and tint headers with colColours / rowColours . To restyle one cell, fetch the cell map with table.get_celld() (keyed by (row, col) , where row 0 is the header) and call set_facecolor() on the cell you want to highlight.

The dashboard classic: a chart on top and its data table underneath. Plot the chart, add the table with loc='bottom' , hide the x tick labels so they do not clash with the table headers, and call plt.subplots_adjust(bottom=...) to make room.

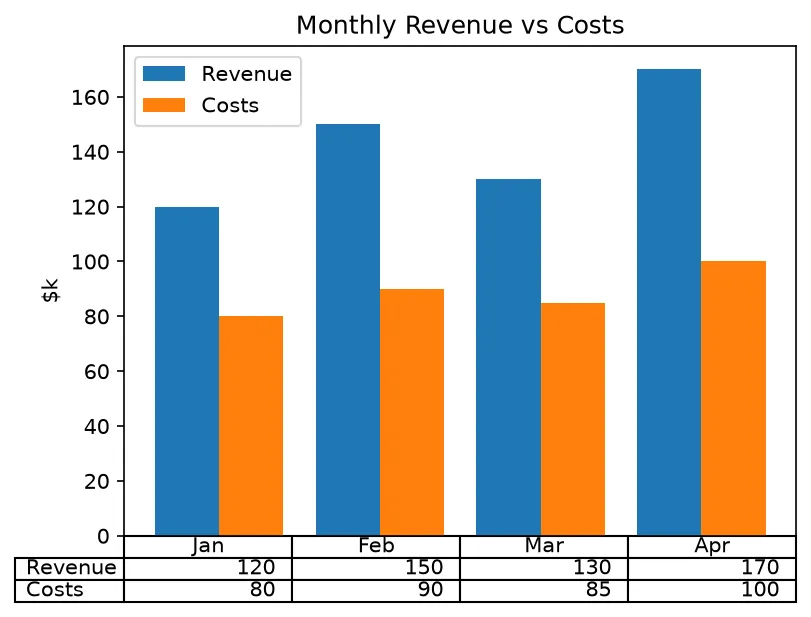

What you'll see: a grouped bar chart of revenue versus costs with a tidy two-row table directly underneath showing the exact monthly figures — a compact dashboard that pairs the visual with the numbers.

Replace each ___ to render a simple two-column table.

Cell values have to be strings. ✅ Convert with str(v) or a list comprehension: [[str(v) for v in row] for row in data] .

There is no room below the axes. ✅ Call plt.subplots_adjust(bottom=0.2) (and left= if you use rowLabels).

Every row needs the same number of columns as there are colLabels . ✅ Make all rows the same width.

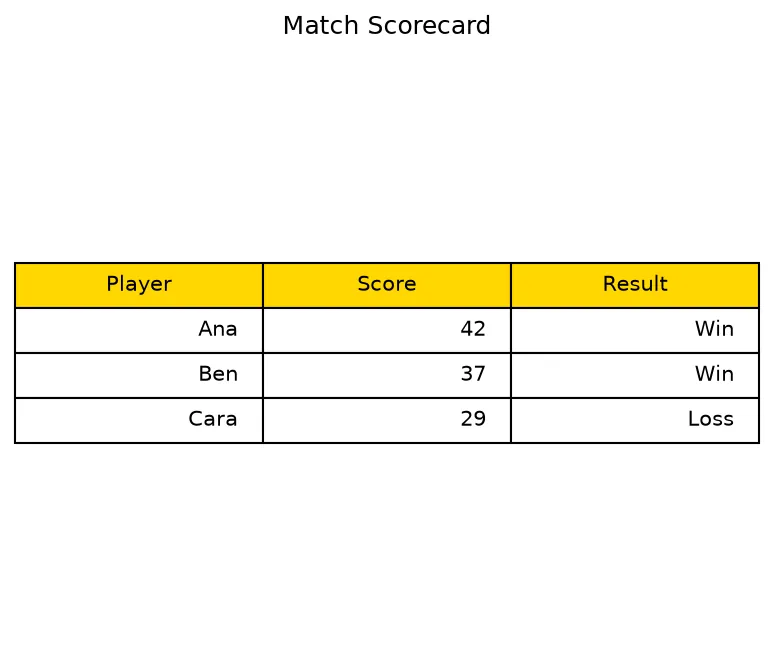

Build a table of three players' scores and color the header row gold.

Lesson complete — your figures can show the numbers!

You built tables with ax.table, added row and column labels, recolored individual cells, and placed a data table beneath a chart for a dashboard look.

🚀 Up next: Logarithmic & Symlog Scales — reveal patterns across many orders of magnitude.

Practice quiz

Which argument supplies the grid of cell values to ax.table()?

  • data=
  • values=
  • rows=
  • cellText=

Answer: cellText=. cellText is a list of rows, each a list of strings, holding the table's cell values.

What type must every value in cellText be?

  • A string
  • An integer
  • A float
  • A NumPy array

Answer: A string. Every cell value must be a string; convert numbers with str() or an f-string.

Which argument adds header cells across the top of the table?

  • rowLabels
  • colLabels
  • headers
  • topLabels

Answer: colLabels. colLabels are the header cells across the top, one per column.

How do you place a table directly under a chart?

  • loc='above'
  • loc='center'
  • loc='bottom'
  • loc='under'

Answer: loc='bottom'. loc='bottom' positions the table beneath the axes.

What does table.get_celld() return?

  • A list of column names
  • The total cell count
  • The figure object
  • A dict of cells keyed by (row, col)

Answer: A dict of cells keyed by (row, col). get_celld() returns a dict keyed by (row, col) where row 0 is the header.

In get_celld(), which key is the FIRST data row, first column?

  • (1, 0)
  • (0, 0)
  • (0, 1)
  • (2, 1)

Answer: (1, 0). Row 0 is the header, so the first data row starts at (1, 0).

Which argument adds header cells down the LEFT side?

  • sideLabels
  • rowLabels
  • leftLabels
  • indexLabels

Answer: rowLabels. rowLabels are the header cells down the left side, one per row.

How do you make the table's rows taller?

  • table.height(2)
  • table.resize(2)
  • table.scale(1, 1.6)
  • table.stretch(1.6)

Answer: table.scale(1, 1.6). table.scale(width, height) scales the cells; a height > 1 makes rows taller.

How do you recolor a single cell's background?

  • cell.color('red')
  • cell.fill('red')
  • cell.bg('red')
  • cell.set_facecolor('red')

Answer: cell.set_facecolor('red'). Call set_facecolor() on the Cell you fetched from get_celld().

Why call plt.subplots_adjust(bottom=0.2) with a bottom table?

  • To make room so the table is not cut off
  • To rotate the table
  • To delete the chart
  • To change the colormap

Answer: To make room so the table is not cut off. It adds space below the axes so the loc='bottom' table fits.
